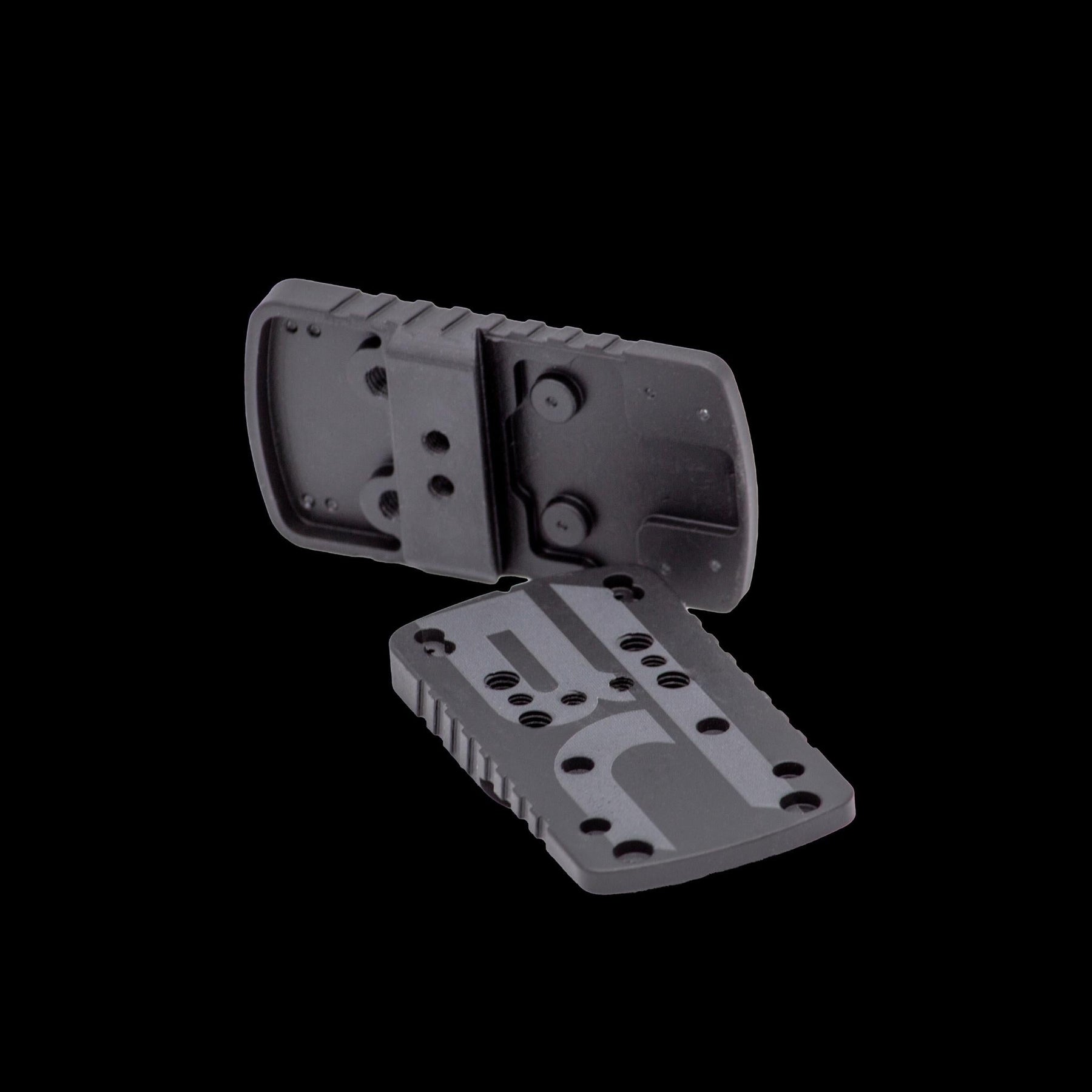

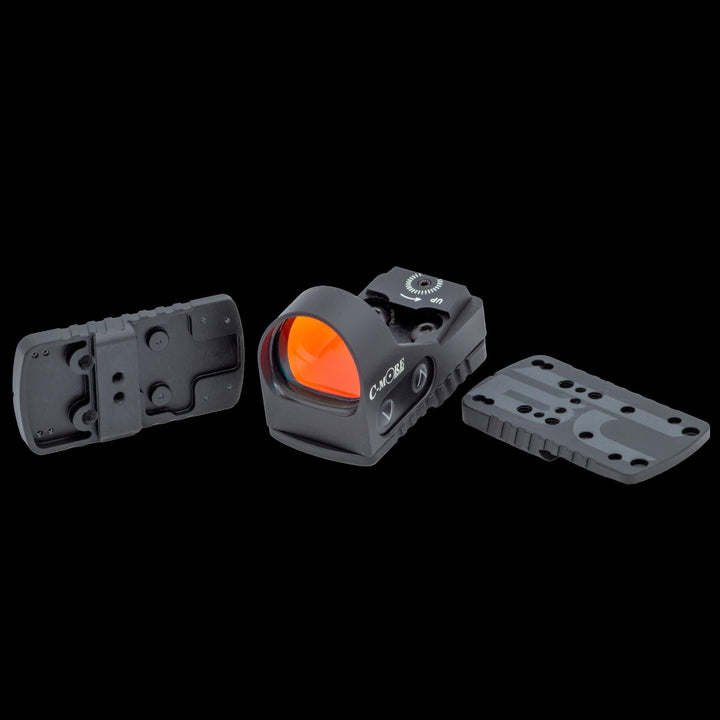

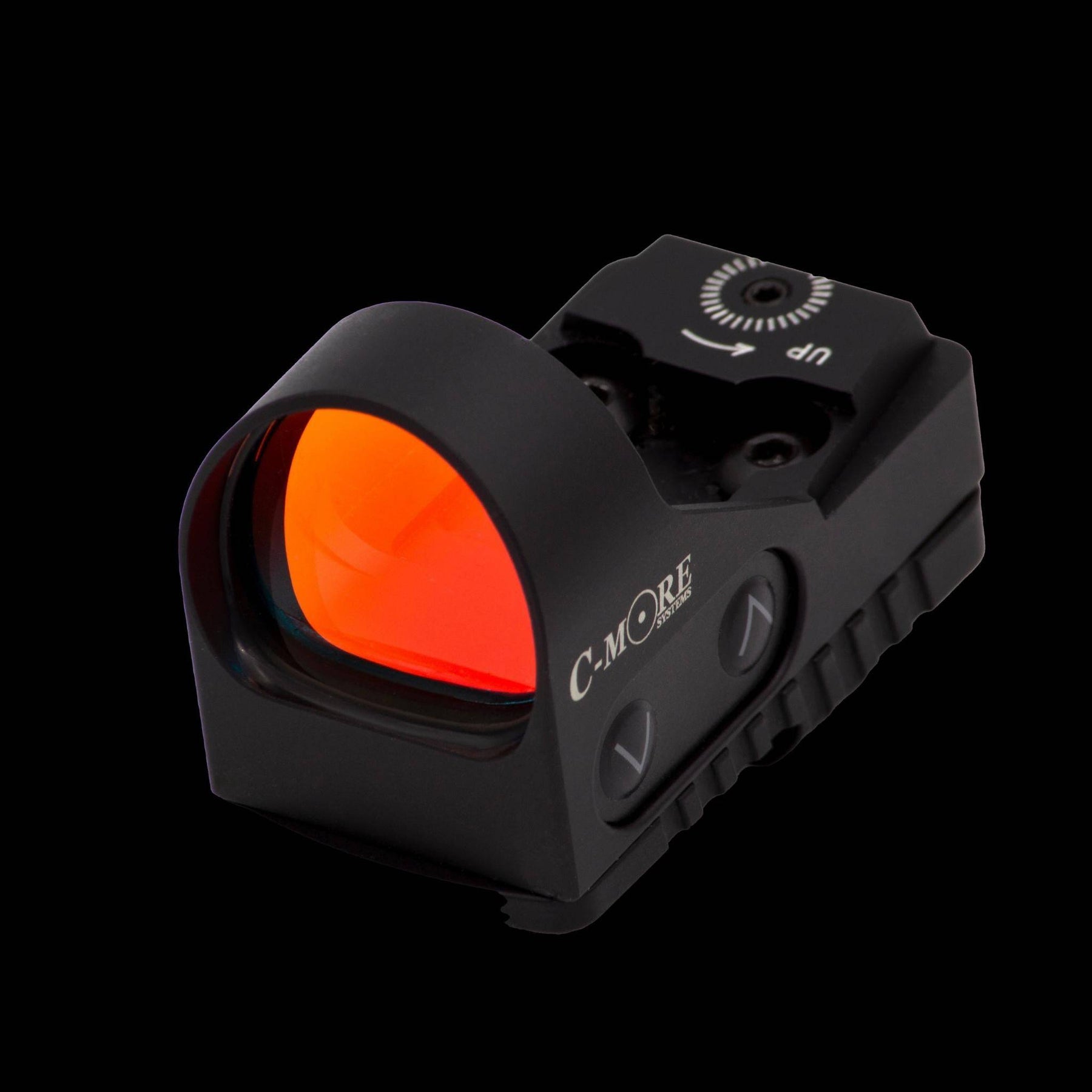

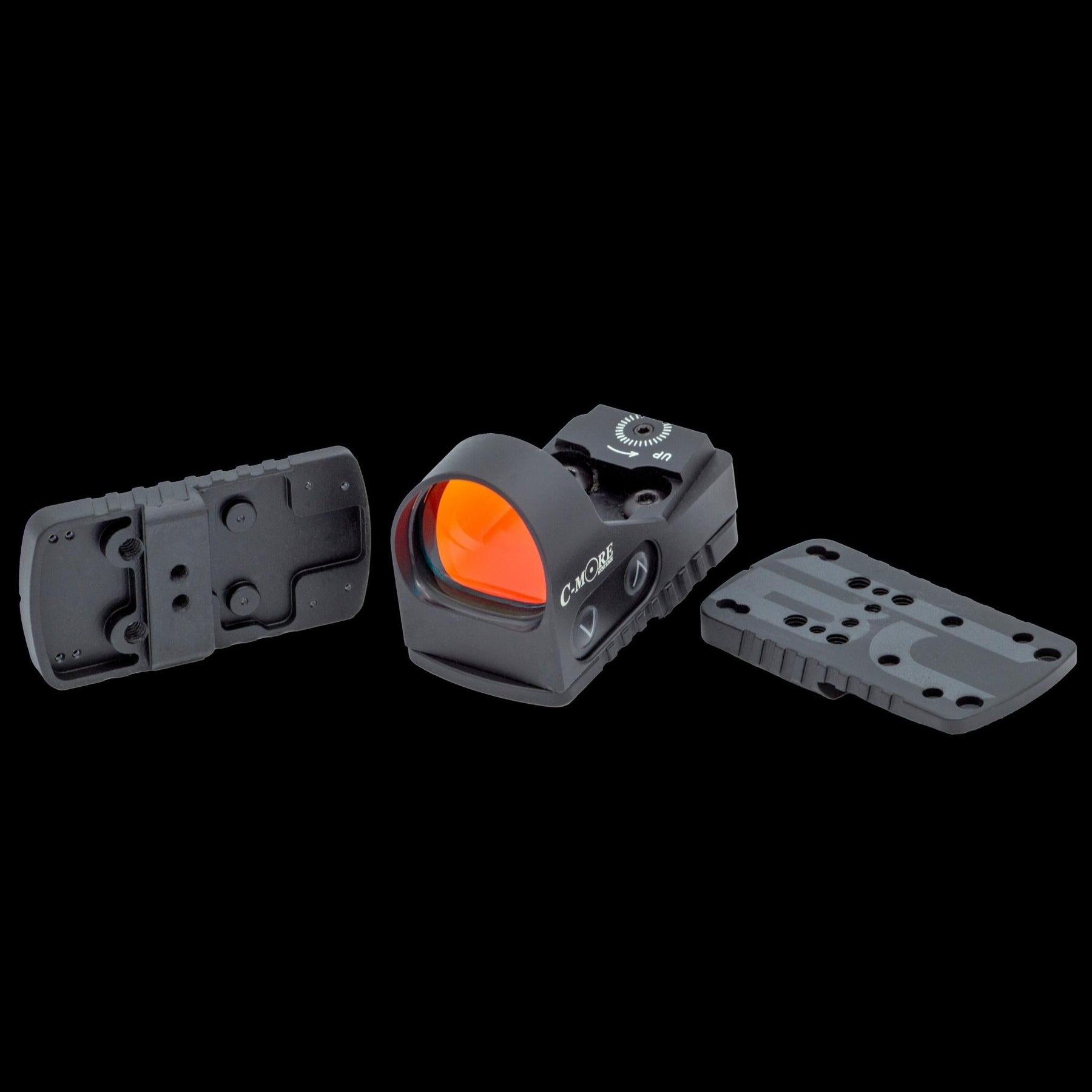

Easily add a variety of red dot sights to the CZ Shadow 2 pistol or clone, such as the C- More RTS 2, Vortex Venom, Trijicon SRO "specialized reflex optic." and other conventional red dot sights that share the same mounting footprint.
The multi-optic red dot mount is installed using the existing rear sight dovetail on the CZ pistol removing the need for milling or modifying the original slide.
Please note this mount is incompatible with the optic-ready slide.
For the CZ Shadow 2 Optic Ready Plate, click here.
Features:
- Precision machined from mild steel with a PVD protective finish
- Serrations on both sides combined with rounded edges enhance grip and comfort when reloading
- Notched mark at the back of the mount to assist with centring the scope mount during installation
- When the red dot is mounted, the scope will be pitched downward
- x8 Locator pins supplied
- x2 Grub Screws supplied
- x2 M3-0.5 X12 Hex screws & washers are included for the installation of the Red Dot to the plate. Please note: (These screws are only needed for those dots that sit over the M3 tapped holes, and may need shortening by cutting/filing for a perfect fitting. Firstly place the Red dot on the plate and thread the screws all the way through. Then flip over to see how much is sticking out. If any thread is sticking out mark the over-length and cut it off as this needs to be ideally flush. Using a Dremel/File is perfect for accomplishing this.)
- Weight: 35g

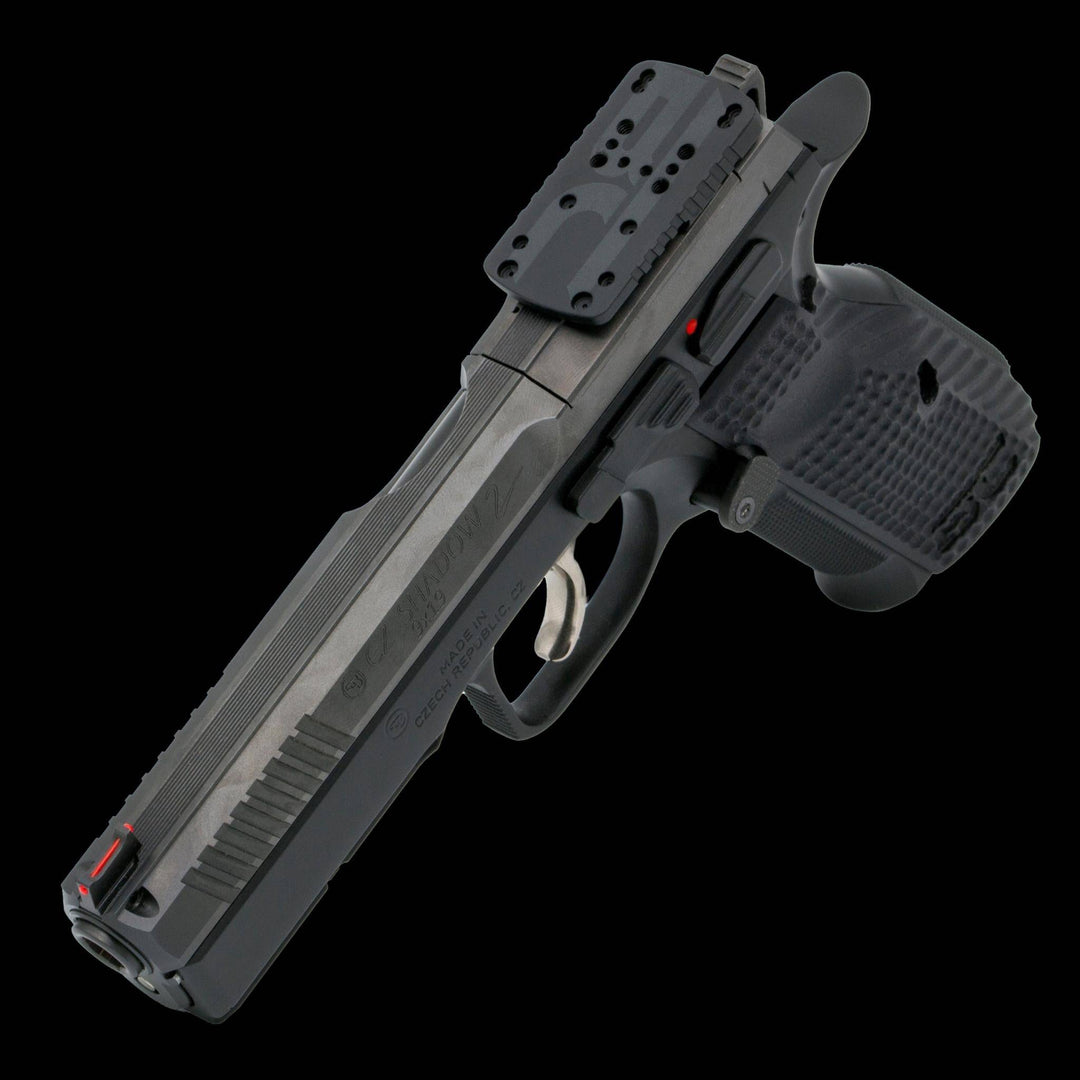

It fits The Following Pistol:
CZ Shadow 2

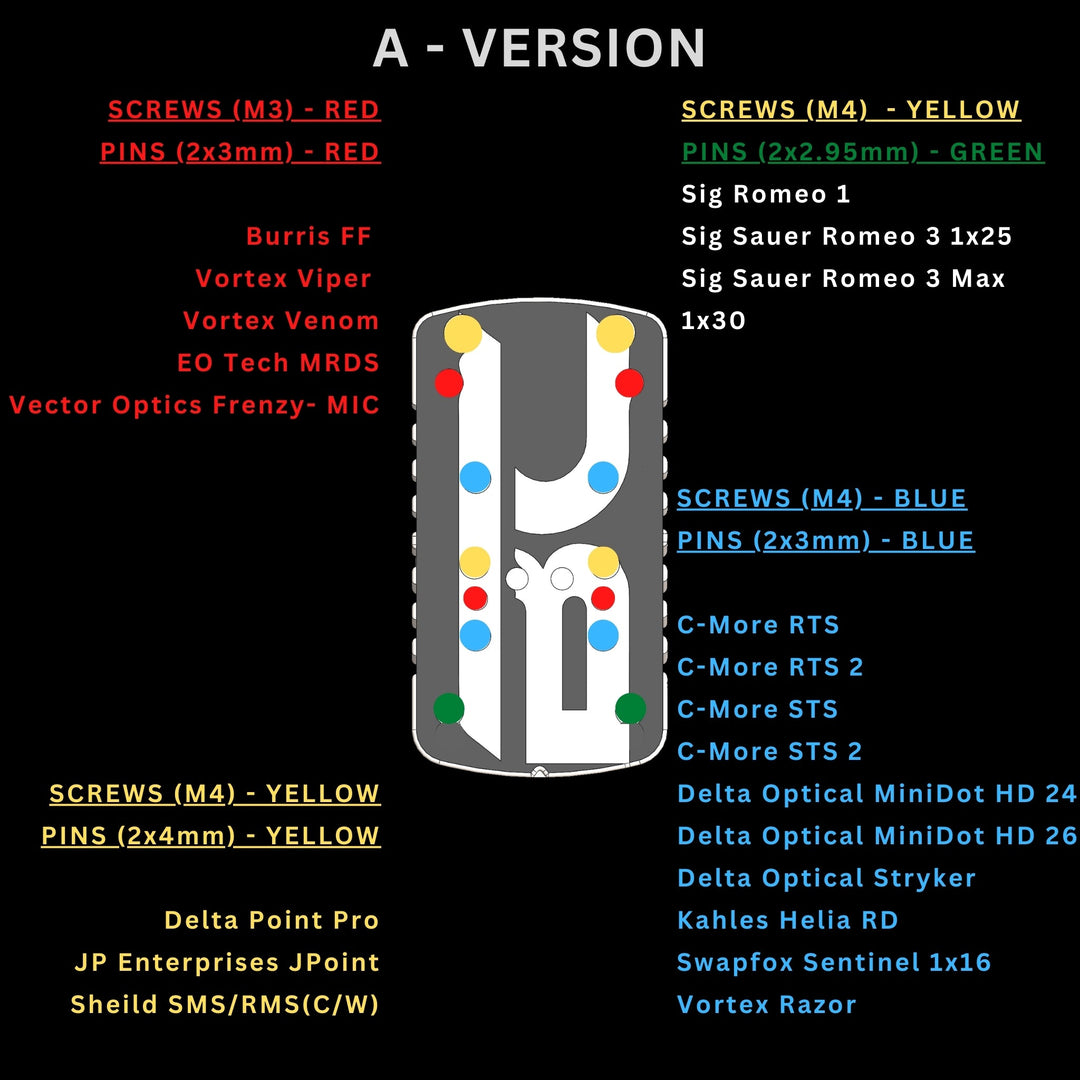

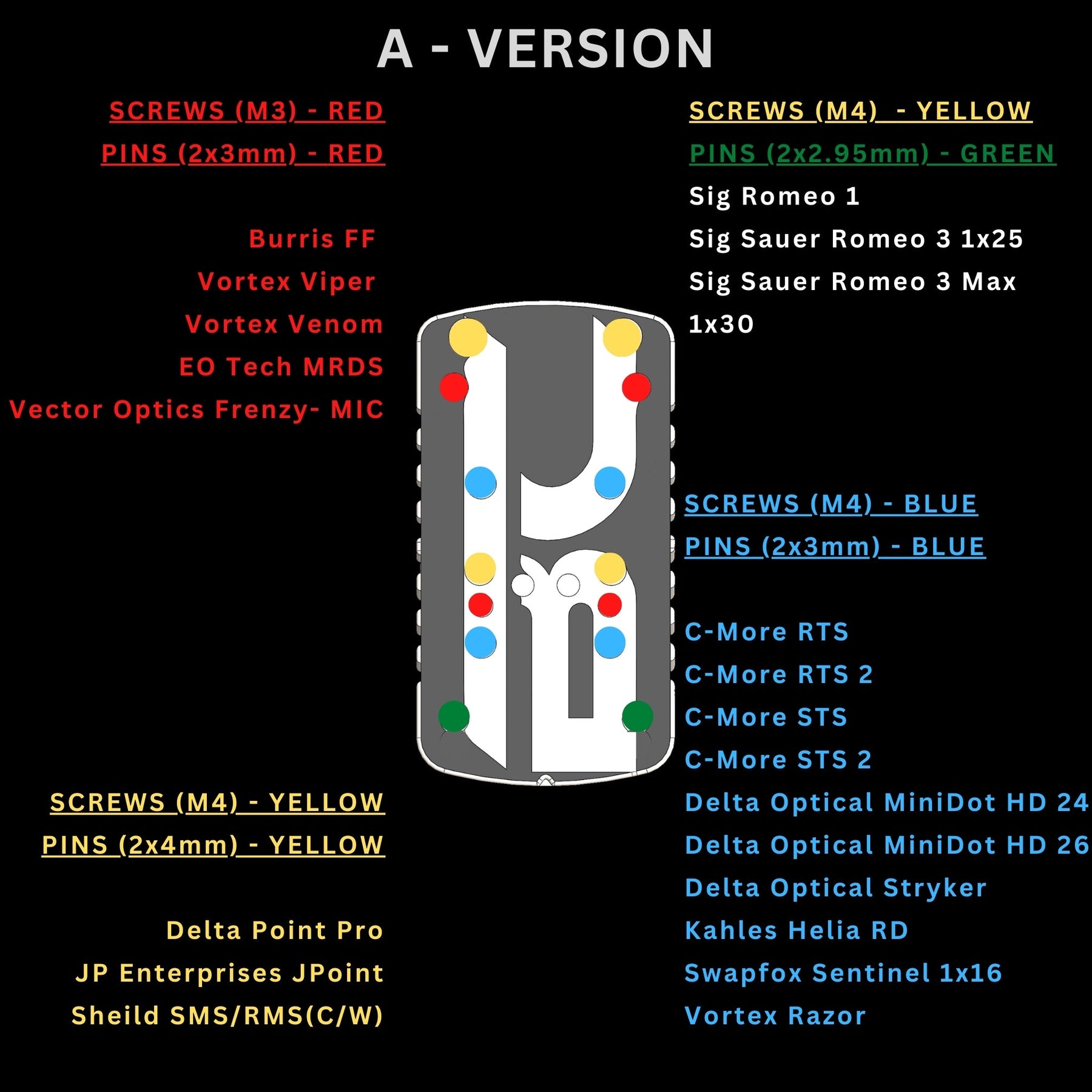

A - Version - Compatible With:
- Burris FF
- Vortex Viper
- Vortex Venom
- Sig Romeo 1
- EO Tech MRDS
- Delta Point Pro
- JP Enterprises JPoint
- Swapfox Sentinel 1x16
- Vector Optics Frenzy-S 1x17x24 MIC
- Shield SMS/RMS(c/w)
- C-More RTS
- C-More RTS 2
- C-More STS
- C-More STS 2
- Delta Optical MiniDot HD 24
- Delta Optical MiniDot HD 26
- Delta Optical Stryker
- Kahles Helia RD
- Vortex Razor
- Sig Sauer Romeo 3 1x25
- Sig Sauer Romeo 3 Max 1x30

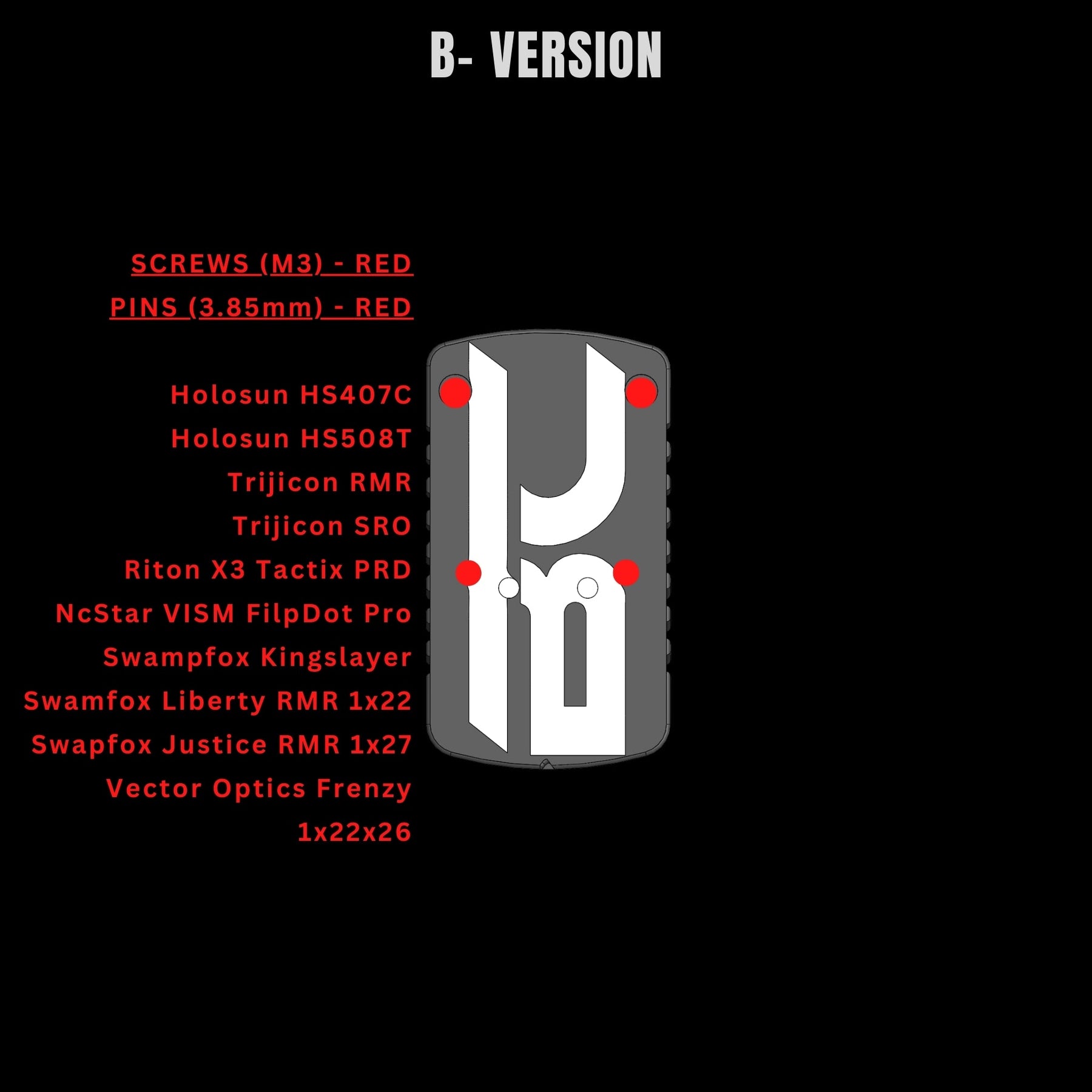

B - Version - Compatible With:
- Trijicon RMR
- Trijicon SRO
- Holosun HS407C
- Holosun HS508T
- Riton X3 Tactix PRD
- NcStar VISM FilpDot Pro
- Swampfox Kingslayer
- Swamfox Liberty RMR 1x22
- Swapfox Justice RMR 1x27
- Vector Optics Frenzy 1x22x26
Boss Components recommends 15-inch lbs of torque and a drip of blue Loctite on all grub & mounting screws.
Use caution when installing screws, as over-tightening can damage the mount.
Please note mounting screws are not included, use the screws supplied with the red dot, and the rear sight pusher tool is recommended for installation. The use of a certified gunsmith is always advised.
